Black Lines & Streaks in Copiers – Troubleshooting Guide

Black lines or streaks appearing on printed pages are common copier and printer image-quality problems. However, a black line is a symptom rather than a diagnosis.

Different line patterns can point to different areas of the imaging, cleaning, developing, transfer or fusing system. Before replacing components, first examine the pattern of the defect and use it to narrow down the possible cause.

Start by Reading the Line

Before replacing any component, examine four characteristics of the defect:

1. Direction
Is the line vertical or horizontal relative to the printed page?

2. Position
Does the line appear in the same position on every page?

3. Repetition
Does the mark repeat at regular intervals?

4. Appearance
Is the line fine, broad, sharp, fuzzy, solid, broken or irregular?

These characteristics provide important clues about where the print defect may be originating.

Direction and Position Give You Clues

The direction of the line can help narrow the area that should be investigated.

If the line runs in the paper-travel direction, look for a defect or contamination affecting a consistent image position.

If the line runs across the page, consider whether a rotating component could be producing the mark during its cycle.

When the defect repeatedly appears in exactly the same position, trace that position through the relevant imaging, transfer and fusing path.

Direction alone, however, should not be used to identify a faulty component. Combine it with the position, appearance and repetition of the defect.

Does the Defect Repeat?

Regularly repeating marks can indicate a rotating component.

Check whether:

• the spacing between marks remains consistent;
• the defect has a similar shape each time; and
• the repeat interval remains constant.

Drums, rollers and fuser-related components are among the areas that may need investigation when a defect repeats at regular intervals.

Where machine service information is available, compare the measured repeat interval with the manufacturer's service data.

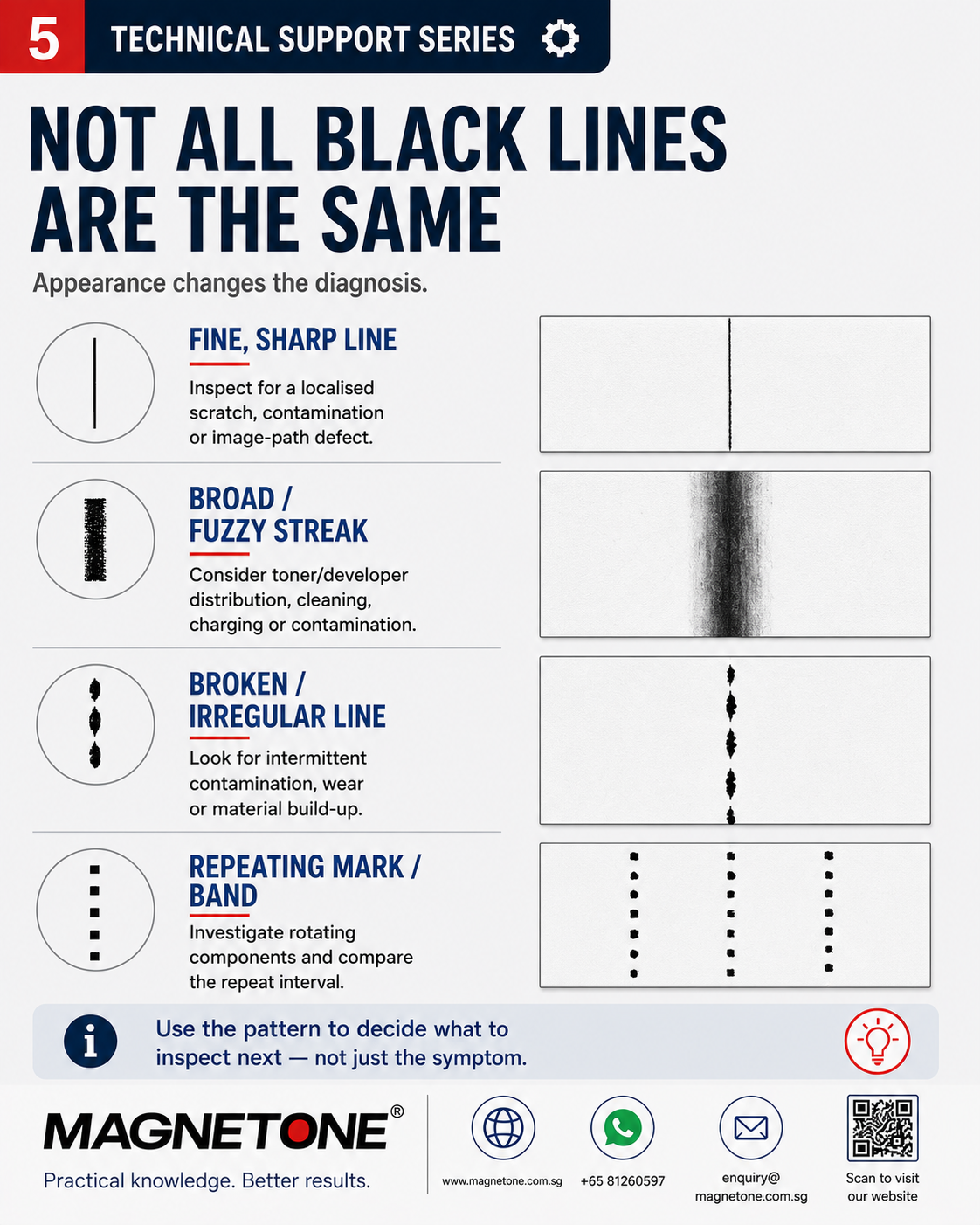

Not All Black Lines Are the Same

The appearance of the line is another useful diagnostic clue.

Fine, sharp line
Inspect for a localised scratch, contamination or image-path defect.

Broad or fuzzy streak
Consider toner or developer distribution, cleaning, charging or contamination.

Broken or irregular line
Look for intermittent contamination, component wear or material build-up.

Repeating mark or band
Investigate rotating components and compare the repeat interval.

The important principle is to diagnose the pattern, rather than replacing parts based only on the symptom.

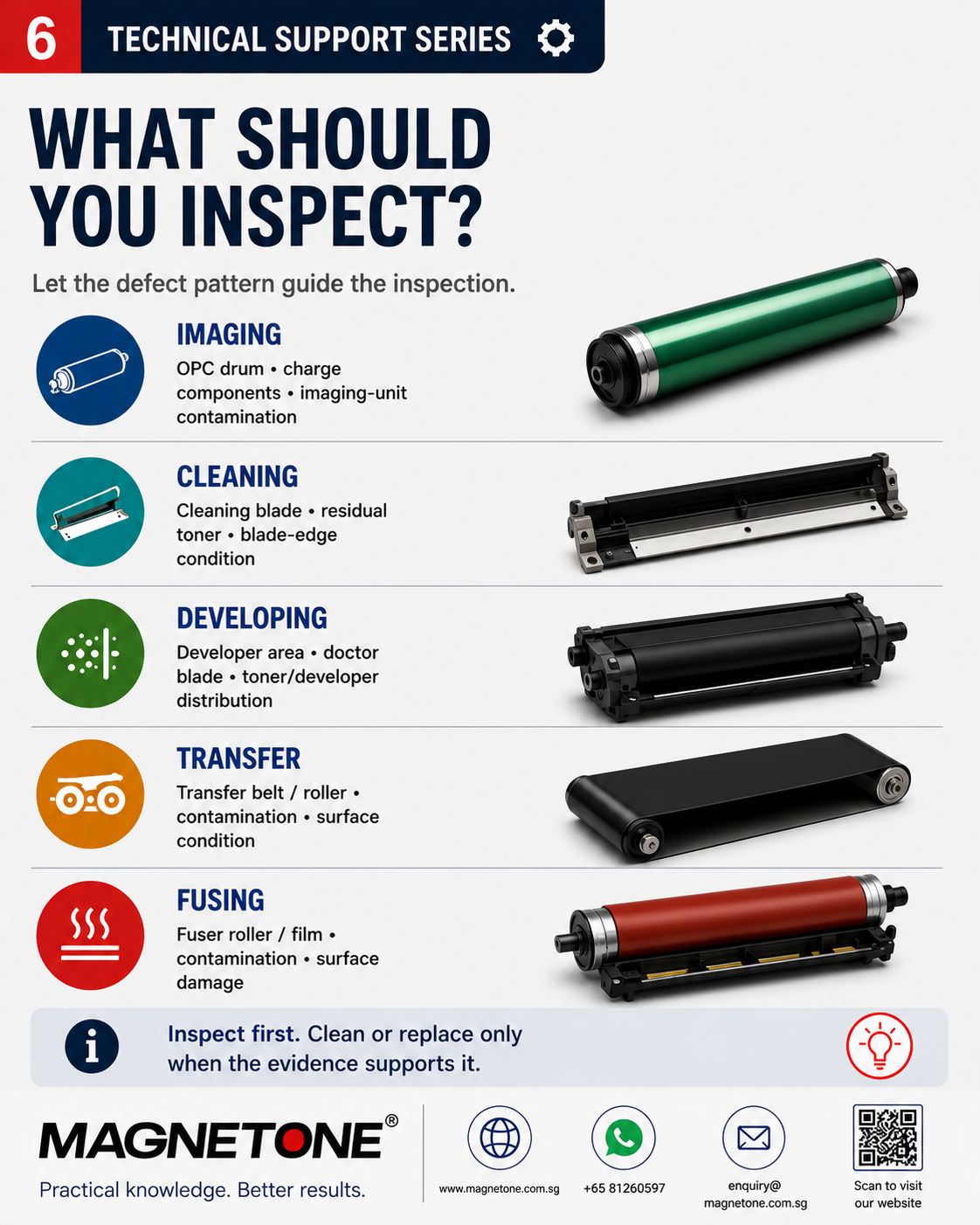

Components and Areas to Inspect

Once the pattern has been characterised, inspect the relevant areas of the copier.

Imaging
Check the OPC drum, charge components and imaging unit for contamination, scratches, wear or damage.

Cleaning
Inspect the cleaning blade, blade edge and surrounding area for residual toner, contamination or wear.

Developing
Check the developer area, doctor blade and toner/developer distribution.

Transfer
Inspect the transfer belt or transfer roller for contamination, wear or surface damage.

Fusing
Check the fuser roller or film for contamination and surface damage.

Avoid replacing several components at once without first establishing evidence of the likely cause.

Practical Diagnostic Sequence

A systematic troubleshooting process can save considerable time and unnecessary component replacement.

Step 1 – Confirm
Print a controlled test page and reproduce the defect.

Step 2 – Characterise
Record the direction, position, appearance and repeat interval of the line or streak.

Step 3 – Localise
Determine which stage of the imaging, transfer or fusing path could produce that particular pattern.

Step 4 – Inspect
Examine the relevant components for contamination, wear or damage.

Step 5 – Correct and Test
Clean, adjust or replace the appropriate component, then run another test print.

Where practical, change one thing at a time. This makes it much easier to determine which action actually corrected the print-quality problem.

Preventing Black Lines and Streaks

Good maintenance practices can reduce recurring print defects.

Keep imaging and paper-path areas clean, inspect components during routine maintenance and use correctly matched toner, consumables and replacement components.

After servicing, always perform test prints to verify print quality. When a fault recurs, record the appearance and repeat pattern; this information can make future diagnosis considerably faster.
