Grey Backgrounding in Copiers – Causes and Troubleshooting

Grey backgrounding is a common print-quality problem where unwanted grey or dark shading appears across areas of the page that should remain white. This occurs when excess toner is attracted to non-image areas during the printing process.

Identifying the source of grey backgrounding requires checking the toner, developer system, imaging components and charging and transfer components systematically.

Common Causes of Grey Backgrounding

The five most common causes are:

1. Toner
Incorrect toner type, poor-quality toner, incorrect toner charge characteristics or contaminated toner can cause backgrounding. Always confirm that the toner is suitable for the machine and application.

2. Developer
Low toner concentration (ATDC), contaminated developer or developer that has reached the end of its service life can affect toner control and contribute to backgrounding.

3. OPC Drum
A worn, scratched or dirty OPC drum, or one approaching the end of its service life, can contribute to poor print quality and unwanted background toner.

4. PCR / Charge Roller
Inspect the PCR or charge roller for contamination and wear. Poor conductivity or incorrect charging voltage may prevent the drum from being charged correctly.

5. Cleaning Blade
A worn or nicked cleaning blade, incorrect blade pressure or contamination can prevent residual toner from being removed effectively.

Other Components to Check

If the problem remains, inspect the developer or magnetic roller for wear, slipping or loss of magnetic strength. Check the doctor blade for condition, gap and pressure. The HVPS output voltages should also be checked, together with the transfer roller or transfer belt for dirt, wear or damage.

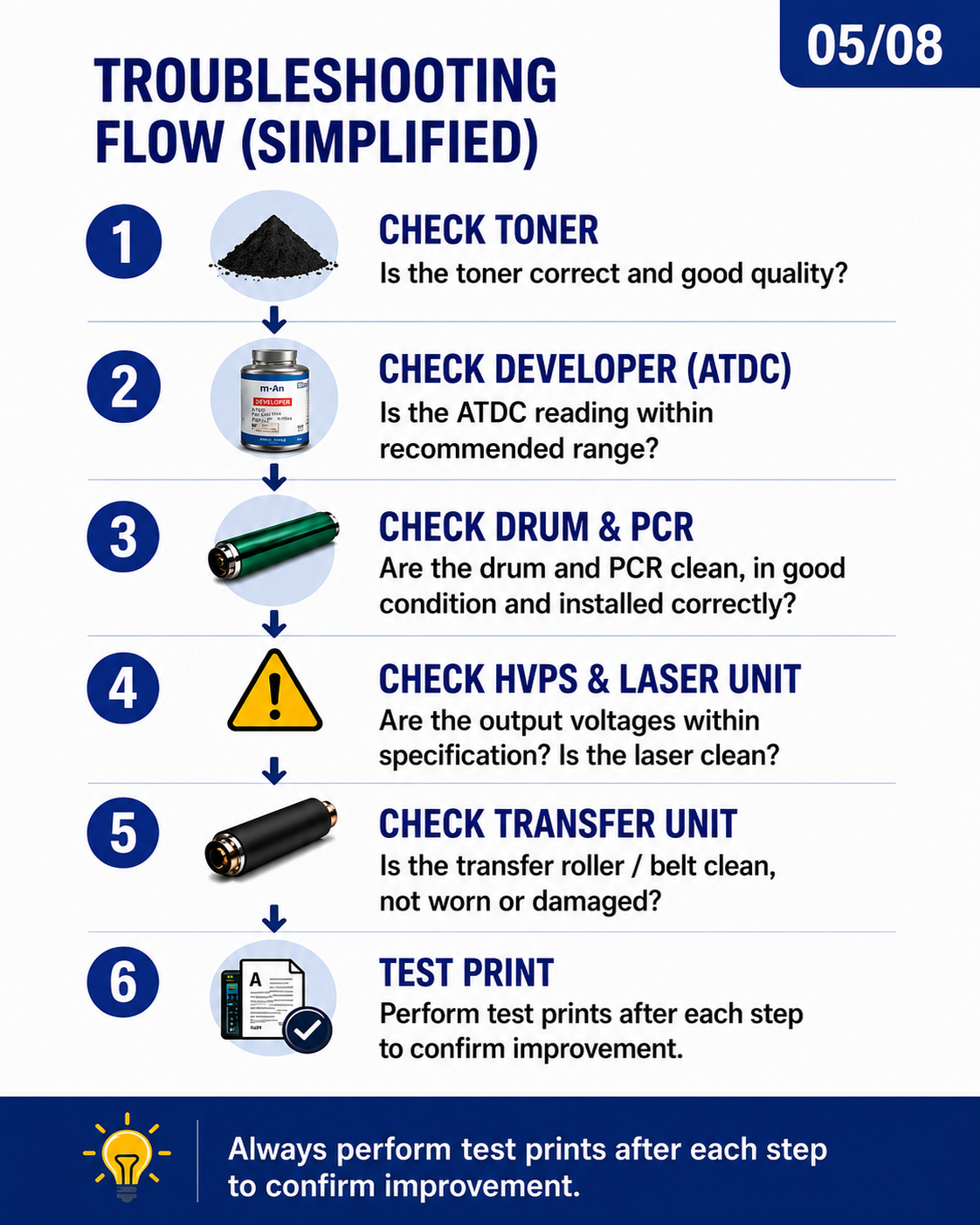

Recommended Troubleshooting Sequence

Start by confirming that the toner is correct and of good quality. Next, check the developer and verify that the ATDC reading is within the recommended range.

Inspect the OPC drum and PCR to ensure they are clean, correctly installed and in good condition. If necessary, check the HVPS output voltages and ensure the laser unit is clean.

Next, inspect the transfer roller or transfer belt for contamination, wear or damage.

Always perform test prints after each troubleshooting step. This helps identify which adjustment or component replacement has corrected the problem instead of changing several components at once.

Example: Xerox Colour Copiers – DC-VII C3371 / C3372

For Xerox DC-VII C3371 / C3372 colour copiers, common causes of grey backgrounding include incorrect aftermarket toner chemistry, contaminated or end-of-life developer, a worn drum cartridge or charge roller, incorrect toner concentration (ATC/ATDC) after toner or developer replacement, and faulty developer bias voltage from the HVPS.

In these machines, toner compatibility and developer condition are among the first areas to verify.

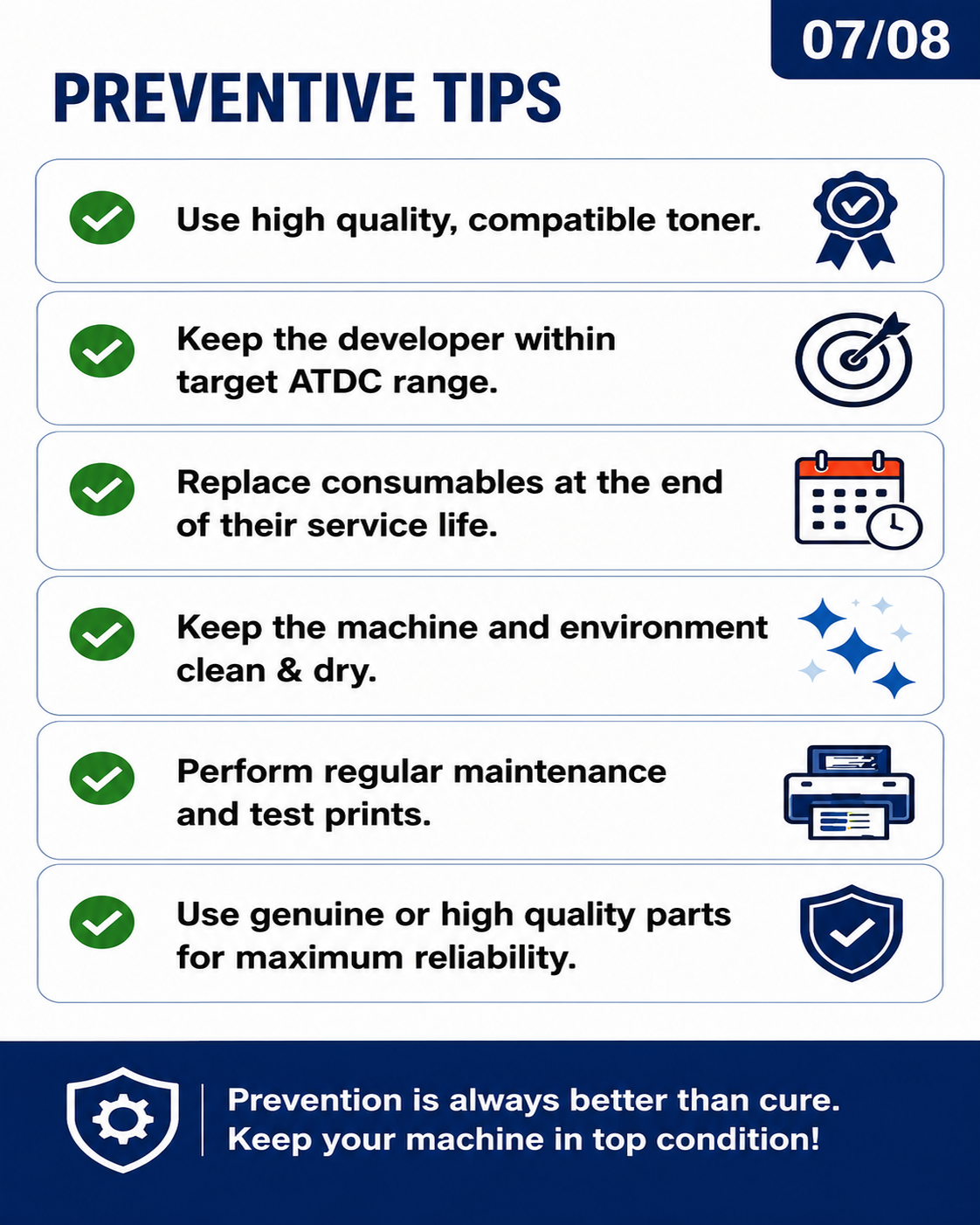

Preventing Grey Backgrounding

Use high-quality compatible toner and keep the developer within its target ATDC range. Replace consumable components when they reach the end of their service life, and keep both the copier and its operating environment clean and dry.

Regular maintenance and test prints can help identify deterioration before it develops into a significant print-quality problem.

For maximum reliability, use genuine or high-quality replacement components that meet the requirements of the copier.
